08 Combo

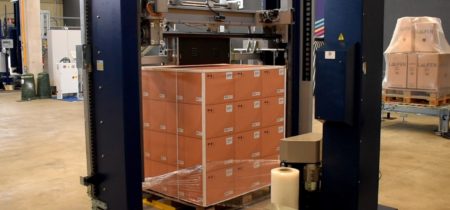

The model 08 Combo is a combination of an automatic vertical strapping and turntable wrapping machine. The suitable solution for any needs regarding a low production with an high variable mix of products.

The 08 Combo model can be set to use the strapping heads, SONIC Plus / TR1400 / TR1400HD / TR1800 / TR2000 capable of handling Polyester (PET) or Polypropylene (PP) strapping based on needs.

Thanks to the welding & cutting device the cycle of this machine model completely automatic.

All the operating cycles of the machines and the individual devices may be programmed through a single operator panel.

Depending on the dimensions of product to be packing, the machines may be equipped with appropriate turntable diameter.

Pack size (standard machine)

Long side Min./Max.: 1200 mm
Short side Min./Max. 800 / 1000 mm
Height Min./Max.: 650 / 2200 mm
Max. pack weight: 2000 Kg

Available options:

Turntable: ø1800 o 2000 mm
High Paks: 3,000 mm
Teleservice module

Photo Gallery

Video

Play Video

STANDARD MACHINE CHARACTERISTICS

  • Type of strap: Polyester (PET) Polypropylen (PP)
  • Applicable strapping heads: SONIC Plus / TR1400 / TR1400HD / TR1800 / TR2000
  • Power supply voltage: 400V (+/-10%) – 3 Phases 50Hz + PE
  • Electric power installed: ~ 5,5 kW
  • Air pressure: 5,5 ÷ 7 bar
  • Air consumption: ~ 30 NL/cycle
  • Production capacity: Up to 20 packs/hour

Applications

PAPER

CARDBOARD

CERAMIC

FRUITS & VEGETABLES

WOOD & PROFILES

LOGISTIC

PLASTIC & CAN
