OMS Stretch hooding IS46

IS46

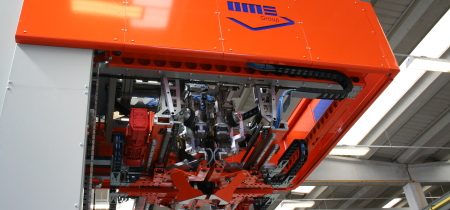

The OMS stretch hooding machine mod. IS46 is an automatic machine which uses a single work station for packaging operations using stretch film.
The machine uses coils of tubular elastic film with side gussets to package differently sized packs (multi format OPTION).
The OMS IS46 has been designed for a high performance (up to 240 packs/h) while keeping a high-quality of the packaged product.
With its innovative coil holder it is possible to prepare the coil which will go into operation without having to stop the machine.
For maintenance purposes, the operator can totally and easily access the machine’s sensible areas since they are all either at ground level or can be reached from the ground.



ADVANTAGES

• High performance: up to 240 packs/h
• No down time during coil replacement
• Energy saving: the stretch film used for the packaging does not need to be heated.
• Stability of the pack: the packaging with stretch film is very tight, so that even unstable packages remain well compacted.
• The water-proof and dust-proof hood protects the products against adverse weather conditions and thefts.
• Environment friendly: less film consumption = less pollution

STANDARD MACHINE CHARACTERISTICS

  • Film Type: polyethylene stretch
  • Thickness: 40 ÷ 180 micron
  • Max Coils Diameter: 1000 mm
  • Max Coils Weight: 400 kg
  • Minimum Conveyors Height: 500 mm
  • Electrical Power Supply: 400 V – 50 Hz threephase + neutral
  • Installed Power: 15 kW
  • Air Pressure: 5,5 – 7 bar – 150 Nl / cycle
